Time series

Time series are the sequences of numbers along the time axis. The interval between the values of the series is constant.

in pandas working with date and time requires changing the data type in the column from object to datetime64. It can be done when reading, using the parse_dates argument. We have to set the dataframe index by specifying the desired columns in the index_col argument:

COPYpython
1# values of parse_dates = list of column numbers or column names
2data = pd.read_csv('filename.csv', index_col=[0], parse_dates=[0])

To check if the dates and times are in chronological order, look at the is_monotonic attribute of the table index. If the order is chronological, the attribute will return True; if not, False.

COPYpython
1print(data.index.is_monotonic)

We can specify date and time as index and select the data by date:

COPYpython
1data = data['2016':'2017']
2data = data['2016-01':'2016-06']
3data = data['2016-01-01':'2016-01-10']

Resampling

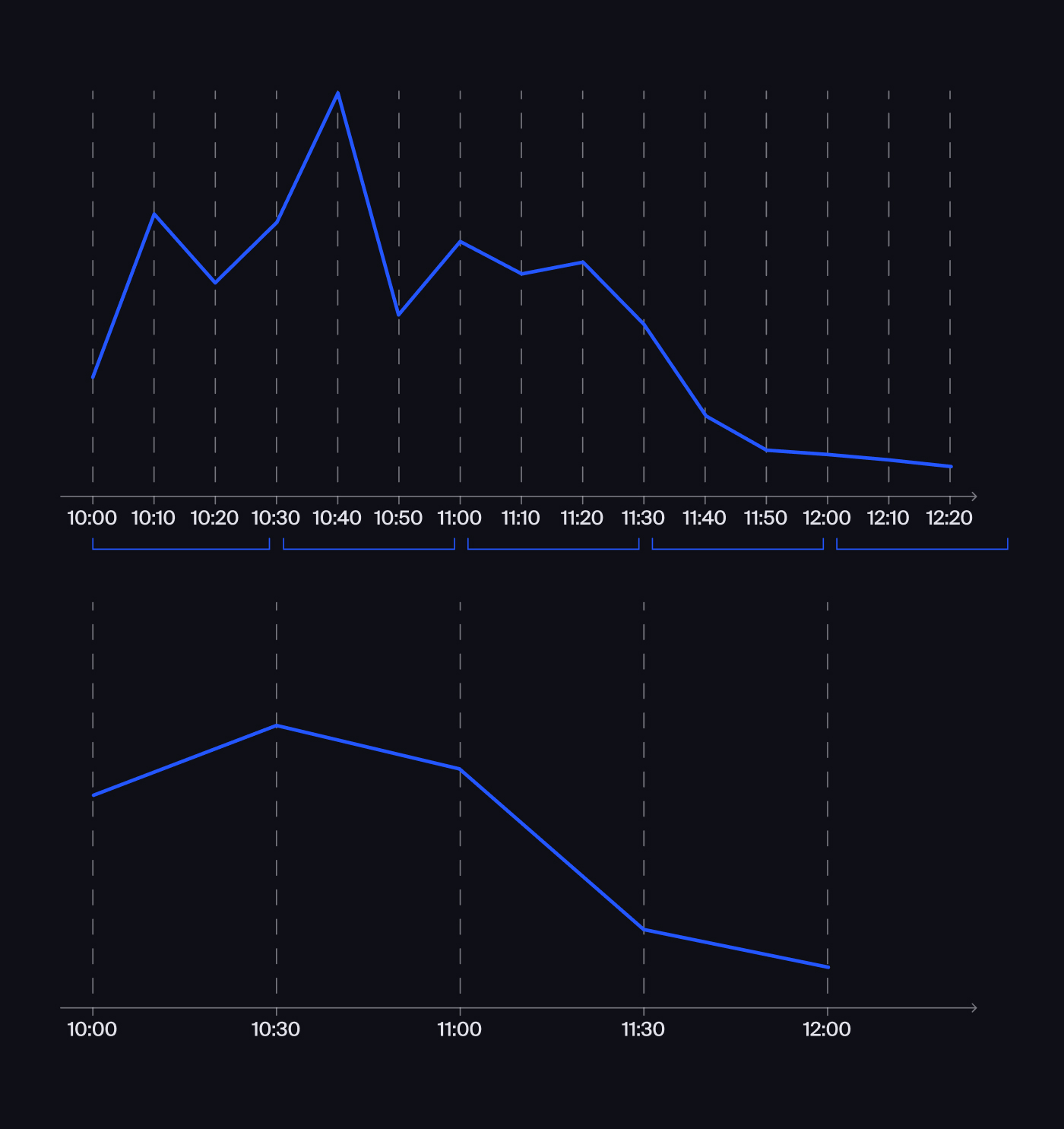

Resampling means changing the interval with the values of the series. It is performed in two steps:

1. Choose the new interval length. Note that the values from the existing interval are grouped.
2. In each group, the aggregated value of the series is calculated. It can be median, mean, maximum or minimum.

To change the interval and group the values, call the resample() function. Specify the new interval in the argument. Here's an example:

COPYpython
1# 1H = one hour
2data.resample('1H')
3
4# 2W = two weeks
5data.resample('2W')

The resample() function is similar to the groupby() function. After grouping, call functions mean() and max() to aggregate the values:

COPYpython
1# mean for each hour
2data.resample('1H').mean()
3
4# maximum for each two weeks
5data.resample('2W').max()

Rolling Mean

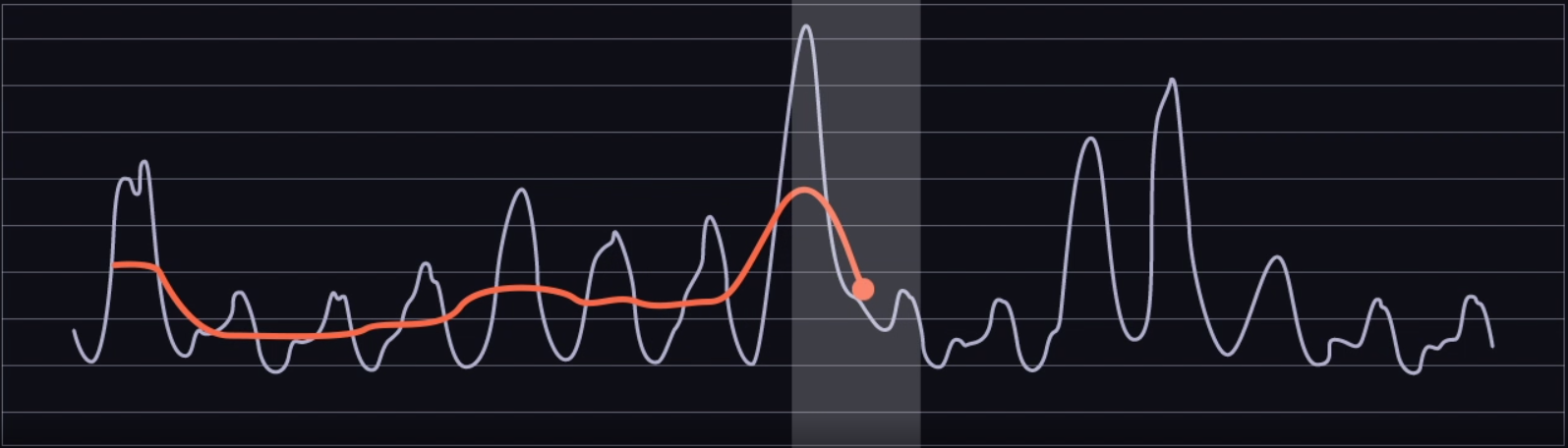

Rolling mean or moving average is a method of smoothing the data in a time series. The method involves finding the values least susceptible to fluctuations, or the arithmetic mean.

Here's how the method works: The interval for averaging (window size) is selected experimentally. The larger the interval, the stronger the smoothing. Then the window starts to "roll" almost from the beginning to the end of the time series. The mean value is calculated at each point.

In the moving average, the windows overlap and cannot go beyond the series. So the number of obtained means will be slightly less than the number of the initial values of the series.

In pandas, the rolling mean is calculated in two steps:

1. Call the rolling() function to create a rolling window. Specify the window size in the argument:

   COPYpython
   1# window size 7
   2data.rolling(7)

2. Call the mean() function to aggregate the values:

   COPYpython
   1# rolling mean with window size 7
   2data.rolling(7).mean()

Trends and Seasonality

A trend is a smooth change of the mean value of the series without repeating patterns.

Seasonality means cyclically repeating patterns in a time series.

Trends and seasonality depend on the scale of the data. You cannot see the patterns repeating every summer if there is data only for one year.

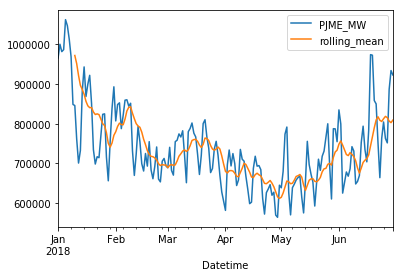

Look at the rolling_mean graph. The increase in electricity consumption in the winter and in the summer is a trend.

If this data is analyzed on the scale of several years, the increase in the winter and in the summer are seasonal changes.

The tsa.seasonal module of the statsmodels library contains function seasonal_decompose(). This function breaks the series into three components: trend, seasonality, and residuals. The residuals component cannot be explained by trend and seasonality and is essentially noise.

COPYpython
1from statsmodels.tsa.seasonal import seasonal_decompose
2
3decomposed = seasonal_decompose(data)

seasonal_decompose() takes a time series and returns an instance of the DecomposeResult class. It contains the required attributes:

• decomposed.trend — trend
• decomposed.seasonal — seasonal component
• decomposed.resid — residuals

Stationary Series

In statistics, the time series is described as a stochastic process. It has random variation and its distribution changes over time. It has a mean and variance, and these values change too.

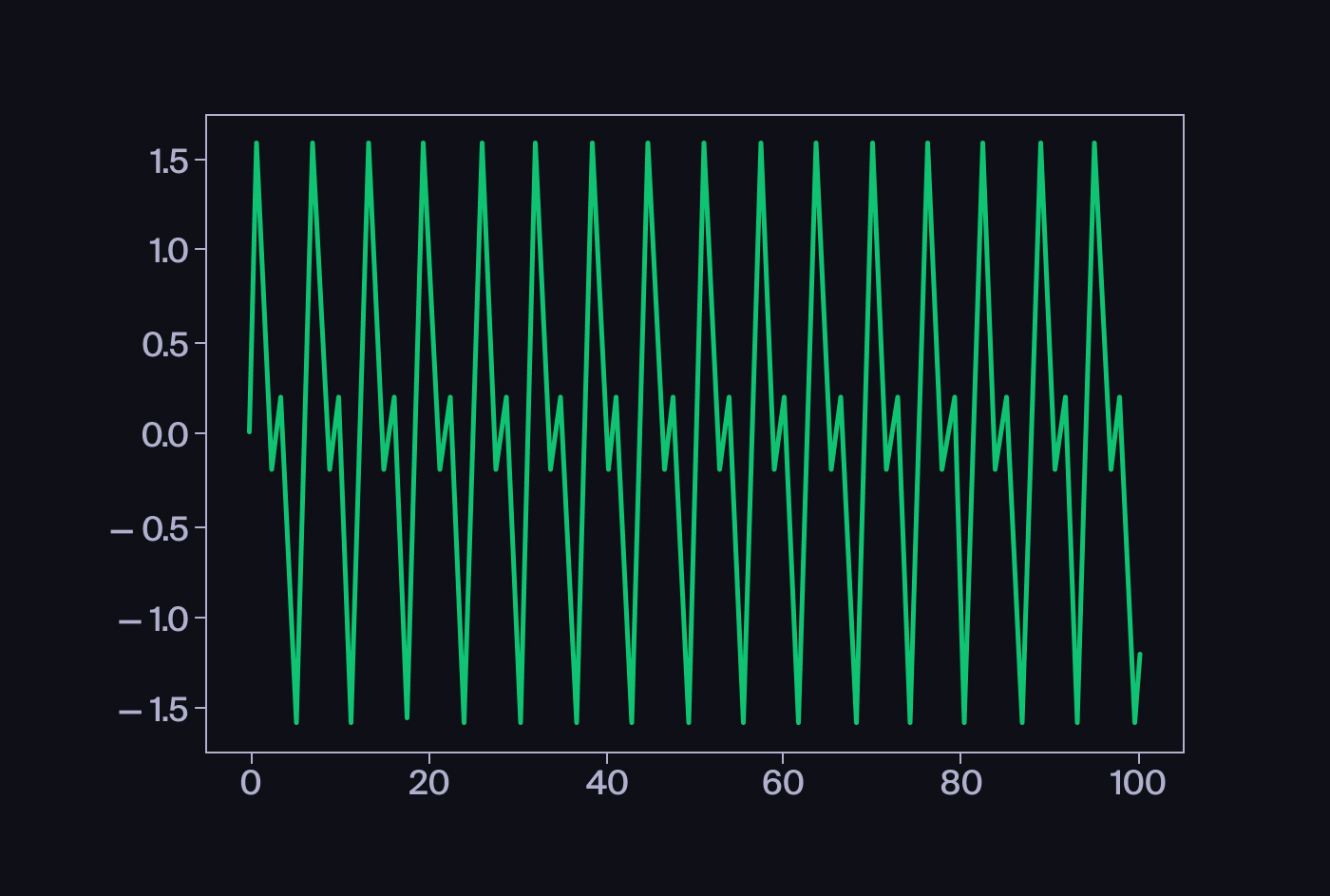

A stochastic process is stationary if its distribution does not change over time. An example of stationary stochastic process is periodic fluctuations of values.

If the distribution does change, then the stochastic process is nonstationary.

We can't find out the distribution of a time series. So the stationary time series is a series where the mean and standard deviation do not change. Out of the two series, the one where the mean and standard deviation change more slowly, is "more stationary".

Nonstationary time series are harder to forecast because their properties change too quickly.

Time Series Differences

Time series differences are a set of differences between neighboring elements of a time series — i.e., the previous value is subtracted from each value.

The shift() method is used to find the differences of time series. All values are shifted one step forward along the time axis:

COPYpython
1data = pd.Series([0.5, 0.7, 2.4, 3.2])
2print(data)
3print(data.shift())

10    0.5
21    0.7
32    2.4
43    3.2
5dtype: float64
60    NaN
71    0.5
82    0.7
93    2.4
10dtype: float64

The last value of the series is lost because there is no place to shift it to. Zero value is NaN, since there's no value for it. Add an argument to fill the missing values.

COPYpython
1import pandas as pd
2
3data = pd.Series([0.5, 0.7, 2.4, 3.2])
4print(data)
5print(data.shift(fill_value=0))

10    0.5
21    0.7
32    2.4
43    3.2
5dtype: float64
60    0.0
71    0.5
82    0.7
93    2.4
10dtype: float64

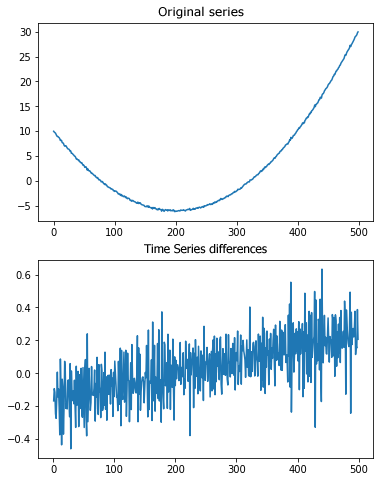

Time series differences are more stationary than the series itself. For example, here a nonlinear tread is converted to a linear one:
